Introduction

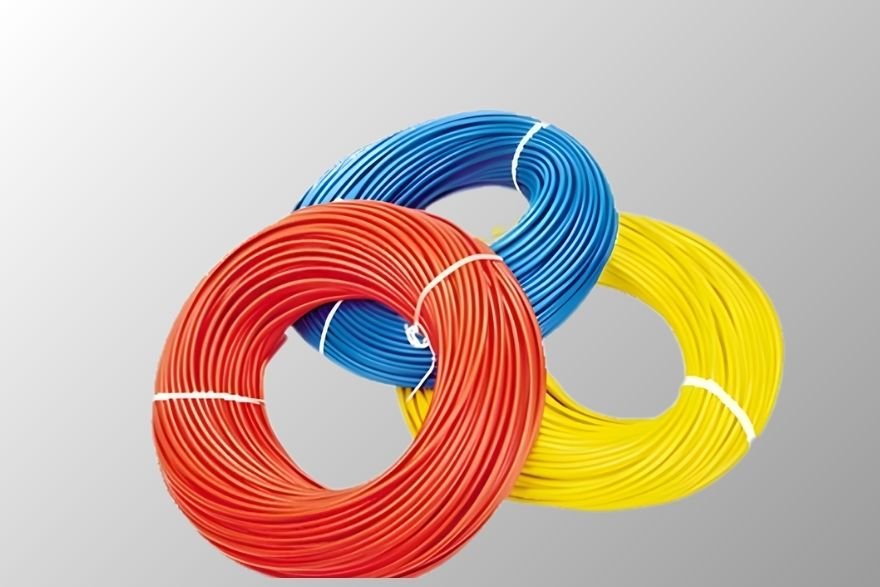

KDI Power HomeCab-FR wires are designed for safe and reliable wiring in residential and commercial buildings. These wires can operate at temperatures up to 85°C as they are insulated with a high-quality flame-retardant PVC compound formulated and manufactured in-house. They also offer excellent resistance to steam and boiling water while maintaining superior electrical and mechanical performance.
Manufactured using minimum 99.97% electrolytic grade annealed bare copper with more than 100% conductivity, the wires ensure efficient power transmission. The fine drawn multi-strand conductor enhances flexibility, making them ideal for concealed wiring applications.
KDI Power HomeCab-FR wires are also designed with anti-rodent properties, helping protect electrical systems from damage caused by rodents. Suitable for installation in lighting fittings and electrical appliances up to 1100 V (AC), these wires perform reliably even under adverse atmospheric conditions. With their advanced features, KDI Power HomeCab-FR wires provide a safe, energy-efficient, and dependable wiring solution.
Application
KDI Power cables are designed for wiring in residential and commercial buildings. The fine drawn multi-strand conductor provides enhanced flexibility, making them ideal for concealed wiring applications. These cables are suitable for installation in lighting fittings and electrical appliances operating up to 1100 V (AC).
Features
- Outstanding electrical and mechanical performance.
- Excellent flame-retardant properties.
- Higher flexibility ensures easy handling and longer service life.
- Resistant to steam and boiling water with anti-rodent protection.
Cable Structure
| Conductor | 99.98% pure electrolyte grade Bright annealed bare Copper. |
| Insulation | FR+HR PVC compound with a high insulation resistance ensures uninterrupted power supply at all weather condition. |
| Operating Temp | -15℃ to maximum + 85℃ |
| Standard length of packing | 90 meters and 180 meters coil in mono pack. |
| Color | Red, Green, Yellow, Blue, Black. |
Cable Technical
| Nominal Cross Sectional Area (Sq.mm) |
Nos./Nominal Dia. of Strand (No./mm) |
Nominal Thickness of Insulation (mm) |
Maximum Overall Dia (mm) |
Max. Conductor Resistance Ohm/Km at 20°C |
Current Rating (Amps) |
|---|---|---|---|---|---|
| 0.5 | 16/0.20 | 0.6 | 2.6 | 39.0 | 4 |
| 0.75 | 24/0.20 | 0.6 | 2.8 | 26.0 | 7 |
| 1.0 | 32/0.20 | 0.6 | 3.0 | 19.5 | 12 |
| 1.5 | 30/0.25 | 0.7 | 3.4 | 13.3 | 16 |
| 2.5 | 50/0.25 | 0.8 | 4.1 | 7.98 | 22 |
| 4.0 | 56/0.30 | 0.8 | 4.8 | 4.95 | 29 |
| 6.0 | 84/0.30 | 0.8 | 5.3 | 3.30 | 37 |
| 10 | 80/0.40 | 1.0 | 7.0 | 1.91 | 51 |
| 16 | 126/0.40 | 1.0 | 8.1 | 1.21 | 68 |
| 25 | 196/0.40 | 1.2 | 10.2 | 0.780 | 86 |
| 35 | 276/0.40 | 1.2 | 11.7 | 0.554 | 110 |
| 50 | 396/0.40 | 1.4 | 13.9 | 0.386 | 145 |
| 70 | 360/0.50 | 1.4 | 16.0 | 0.272 | 215 |
| 95 | 475/0.50 | 1.6 | 18.2 | 0.206 | 260 |
| 120 | 608/0.50 | 1.6 | 20.2 | 0.161 | 305 |
| 150 | 756/0.50 | 1.8 | 22.5 | 0.129 | 355 |
| 185 | 925/0.50 | 2.0 | 24.9 | 0.106 | 415 |
| 240 | 1221/0.50 | 2.2 | 28.4 | 0.0801 | 500 |
Why House Wires & Cables
- Manufactured using 99.99% pure electrolytic grade bright annealed copper for enhanced conductivity.
- Insulated with in-house formulated and manufactured PVC compound.
- Excellent fire and heat-retardant properties under various operating conditions.
- Enhanced reliability, improved energy efficiency, and a high level of safety with a high Oxygen Index.
- Maximum energy savings ensure excellent value for money.
